How to visualize RADIUS connections

by parsing Windows Server log files

Note: This tutorial is working for Windows Server 2003 to 2012R2 with NPS installed. It's not currently working with freeradius

After finishing this tutorial you'll have a live graph of your RADIUS connections and see which users are having troubles connecting.



Before we begin keep in mind that none of the servers or services I'm describing should be available from the internet. This should only be implemented in a LAN environment because the traffic will be unencrypted. Don't install the database or the dashboard on a device that is accessible through the internet.

What we'll need

Setting up InfluxDB

InfluxDB is my database of choice since it's built up from the ground as a time based database. That means every entry will automatically have the time as index (primary key).


My explanations work with debian based systems. For other systems like OSX use this guide

sudo dpkg -i influxdb_0.9.5.1_amd64.deb

Changing the config

Since we want the best performance we'll send our RADIUS data over UDP. To enable this edit the influxDB config file nano /etc/influxdb/influxdb.conf and replace the [[udp]] config with these lines:

  enabled = true
  bind-address = ":8090"
  database = "radius"
  batch-size = 5000 # will flush if this many points get buffered
  batch-timeout = "1s" # will flush at least this often even if the batch-size is not reached
  batch-pending = 10 # number of batches that may be pending in memory
  read-buffer = 0 # UDP read buffer size, 0 means to use OS default

Restarting InfluxDB

service influxdb restart

After restarting influxDB the "radius" database will automatically be created and linked to the UDP Port 8090

You can confirm that influxDB is working by surfing to (8083 is the default webinterface port for influxDB)

Collecting RADIUS data

This is where the magic happens. Since we can't change the NPS RADIUS Server to serve to influxDB directly, we'll have to parse the log files.

Make sure your logfiles exist at C:\Windows\System32\LogFiles. They should start with "IN" and then year, month and ".log" as extension. eg: C:\Windows\System32\LogFiles\IN1601.log for january 2016.

I have created a GitHub project for this:

Get the parser

Download the parser to your Windows Box

git clone

Alternatively download it from here

Change the config

Edit the first lines in the analyze_influx.php file so it points to the right IP of the influxDB server and don't forget to set your timezone.



What do these things mean?


If set to true, you can import old log files. The parser will exit after importing all. If you do this more than once you'll have double entries. Also keep in mind that these log files are around 100MB per month and parsing them might use very much memory on your influxDB box! I imported data from 2011 to 2015 and it used about 16gigs while importing.

If set to false the parser will parse the current log file only and wait for it to change and parse again. This means the script will run until you kill it. You might want to consider creating a system service that starts this script automatically. There are tools for that


If set to true, the script will parse the time from the logfiles and put them into influxDB. It's recommended since otherwise you might have wrong dates

If set to false it will insert the data with the current server time

PATH (string)

Is the path to your log files. This should only be changed if you are testing the script for testing

DB* (string/int)

DBNAME, DBIP and DBPORT are the settings on which InfluxDB to connect. These settings should be set acordingly to the /etc/influxdb/influxdb.conf file and point to the IP of the influxDB server.


If set to true, the script will create a text file where it stores the last timestamp it sent to the database. This is useful because it prevents double data insertion when you start the script twice

If set to false it will parse the whole file and put it in the database even if this file has already been parsed before

Should be working now!

If you start the script on the server (with php installed) it should parse and fill your database. You can confirm this by pointing your browser to, selecting the "radius" database in the top right corner and using a query like:

SELECT * FROM "radius" LIMIT 10

It should show something like this:

Query example

Last step: Get Grafana and make nice graphs

Note: This step could be done from the Windows box too but I like to put Grafana and InfluxDB on the same box so I can work with "localhost" and it doesn't use any more traffic.

Download + Install

Download Grafana from here

Then start Grafana service grafana-server start.

Point your browser to (3000 is the default port for Grafana)

Create a datasource

After creating your admin account and logging in you have to create a Data Source. Top right -> Add new

Data Source

Then fill in:

Data Source example

And click "Add"

Almost done!

Import the Dashboard

Surf to and import the grafana_dashboard.json from the Git repo

And click "Import"

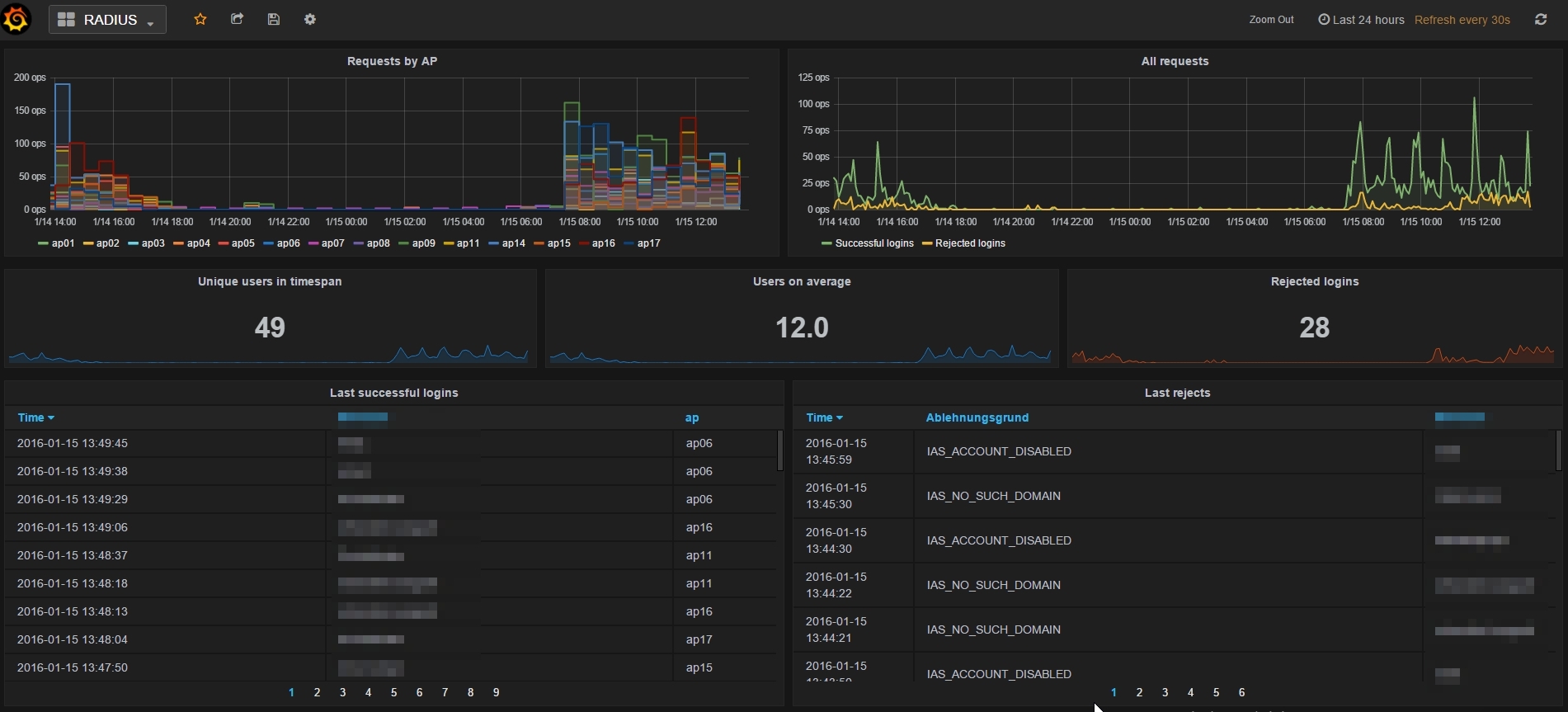

You should now see your dashboard which automatically updates and displays all connections.
